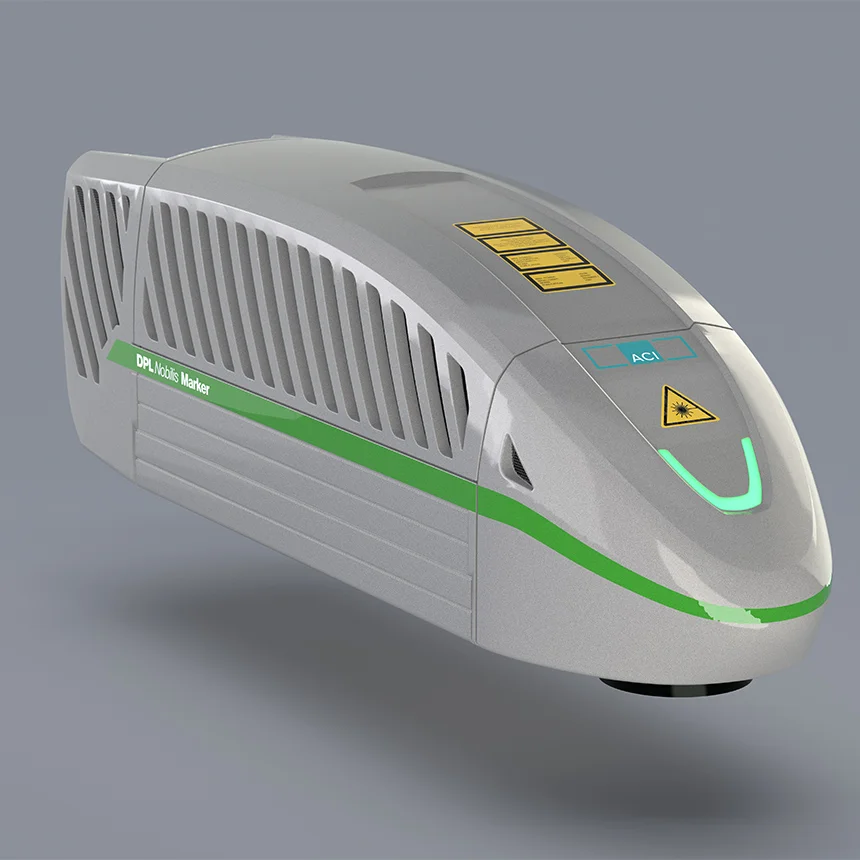

The DPL Nobilis Marker is a powerful laser that can produce very fine markings on various materials. It is particularly suitable for high contrast plastics, gold, copper or other highly reflective materials that require fast and accurate marking. The laser has thermoelectric air cooling, which ensures high system availability and low maintenance.
The system complies with laser protection class 4, but ACI also offers all laser systems with various protective housings to enable operation in accordance with laser protection class 1. These enable the laser systems to be used as a manual workstation or as an integration element in an automated system.
| Material and process | DPL Nobilis Marker |
|---|---|
| Temper the metal | |
| Engrave metal | |
| Remove metal | |
| Foam plastic | |
| Carbonize plastic | |
| Engrave plastic | |
| Foil removal | |
| Foil color cover | |
| Glass | |
| Ceramics | |
| Wood, paper, leather |
The laser system is controlled using our in-house Magic Mark laser software. It enables the marking of workpieces with text, graphics, codes (DataMatrix codes, barcodes), serial numbers and logos. It can also be used to apply circumferential marking to rotationally symmetrical components without using an attachment. Intelligent rights management supports the creation of different operator groups. This allows the laser system to be adapted to the respective user requirements. Fully automatic operation with data exchange to various data sources is easily possible when used in automated production lines. The functions of Magic Mark can optionally be extended using plug-ins such as the code or script module.
All laser systems are equipped with a safety device (SD) certified to EN ISO 13849 in accordance with the requirements of functional safety, thus guaranteeing the user the highest possible protection against malfunctions and a safe condition of their laser system. (EN 13849 PLe Cat. 4).
When marking a product or component, the aim is to create a marking that is permanent, high-contrast and high-resolution. In addition, the material should only be subjected to minimal stress or have its properties altered. These requirements are optimally met by the Business Diode GN series laser systems.
