Laser stations

Workstation RT400

The Workstation RT400 is a rotary indexing table that is designed to allow laser marking of workpieces using a process that requires virtually no interruptions. The RT400 can be loaded and unloaded while the laser marking process is still in progress, and the time this saves is a boon to series production.

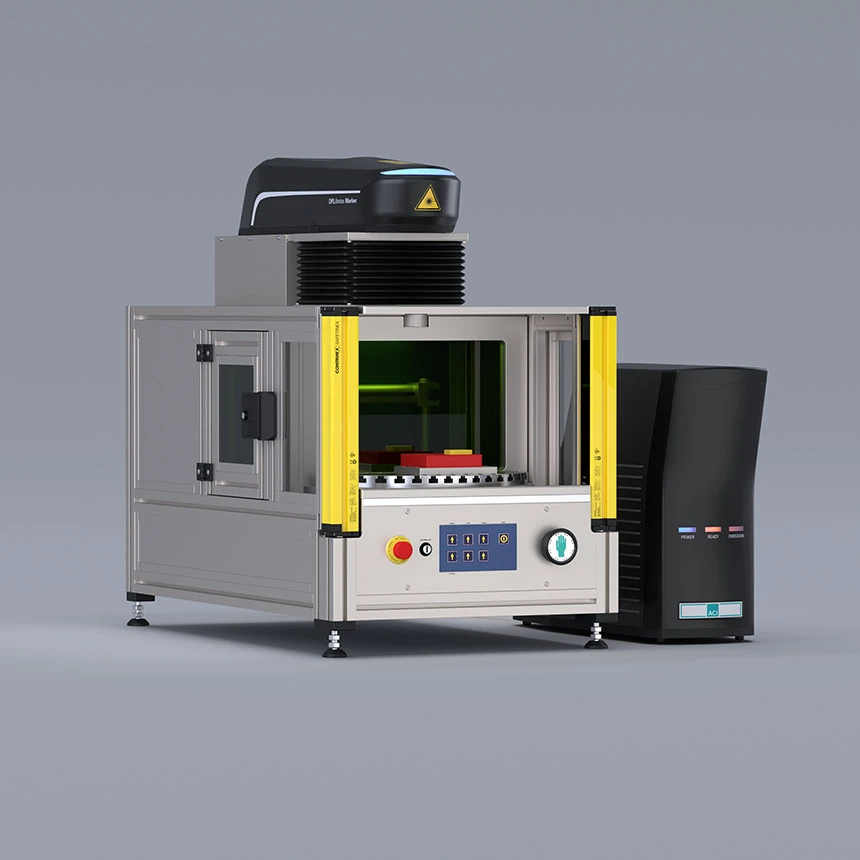

Laserstation Workstation RT400 Rundtakttisch mit Faserlaser DFL Ventus Marker aus der Serie Business Fiber

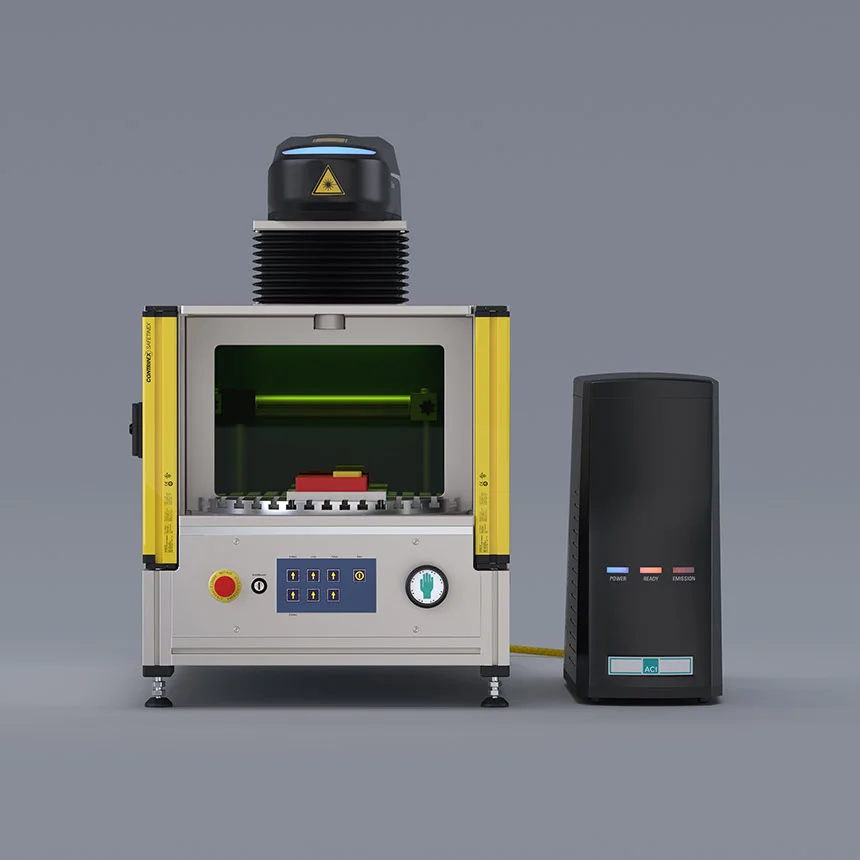

Frontalansicht der Laserstation Workstation RT400 Rundtakttisch mit Faserlaser DFL Ventus Marker aus der Serie Business Fiber

Technical data
Workstation RT400
Tellerdurchmesser400 mm
Drehwinkel180 °
Drehgeschwindigkeit3 s
Laserklasse1
Maße (L x B x H)510 x 556 x 885 mm
Gewicht (ohne Laser)~ 120 kg
Beladungslast je Zuladungsposition8 kg
InterfaceUSB
Features
  • Tabletop version (tabletop)
  • Programmable Z-axis for marking workpieces with different heights
  • Connection option for two occupancy sensors
  • Digital inputs and outputs for controlling the table rotation
  • Key-operated switch for switching between manual and automatic operation
  • Integrated PLC control
  • Connection for external extraction and filter system
  • One-hand operation via touch button
  • Transparent standing wall with laser protection window for optimum monitoring of the marking process
  • Side door to facilitate set-up
  • Integrated focus finder
  • Can be combined with fiber laser systems in various performance classes
Optional accessories
  • Vision system (AOI, CPM) for camera-supported laser marking
  • Code and ID reading systems (code reader, tool reader)
  • Workpiece holders, e.g. prism device, changing device
  • External laser extraction with control line and extraction hose
  • Desktop or industrial PC
Software

The laser system is controlled using our in-house Magic Mark laser software. It enables the marking of workpieces with text, graphics, codes (DataMatrix codes, barcodes), serial numbers and logos. It can also be used to apply circumferential marking to rotationally symmetrical components without using an attachment. Intelligent rights management supports the creation of different operator groups. This allows the laser system to be adapted to the respective user requirements. Fully automatic operation with data exchange to various data sources is easily possible when used in automated production lines. The functions of Magic Mark can optionally be extended using plug-ins such as the code or script module.

More about Magic Mark

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Safety

The Workstation Professional is a turnkey system solution in accordance with laser protection class 1 and therefore guarantees maximum operator safety. No additional safety equipment is required.

An integrated light curtain provides additional user protection. If this is triggered, all processes are stopped. The process can be continued by pressing the start button again.

As an accessory option, we offer you special extraction and filter systems for extracting the pollutants produced during laser processing. A corresponding connection for an external laser extraction system is available on the laser station.

The ergonomically optimized design of the table workstations and the practical functionality ensure a high level of user satisfaction.

Suitable Laser systems
