Laser stations

Foil Star

Foil Star is a foil handling system which is used in cases where it is not possible to mark the material directly using a laser beam. Long-lasting, high-quality and resistant marking of special films and labels can be achieved in large quantities using the Foil Star.

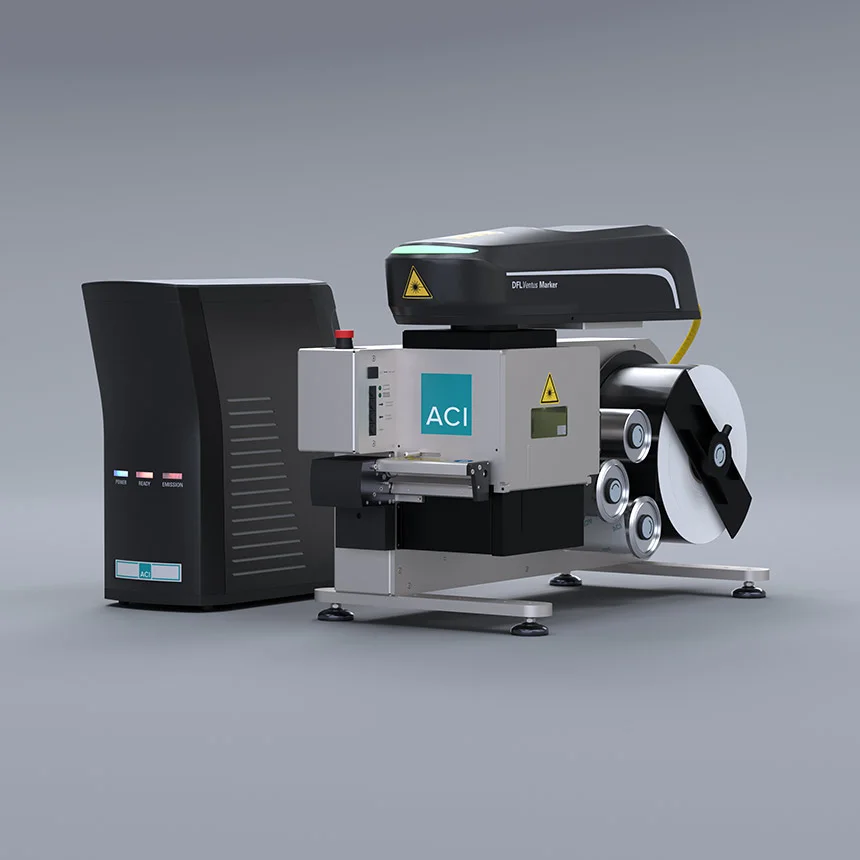

Folienhandlingsystem Foil Star mit Faserlaser DFL Ventus Marker der Serie Business Fiber

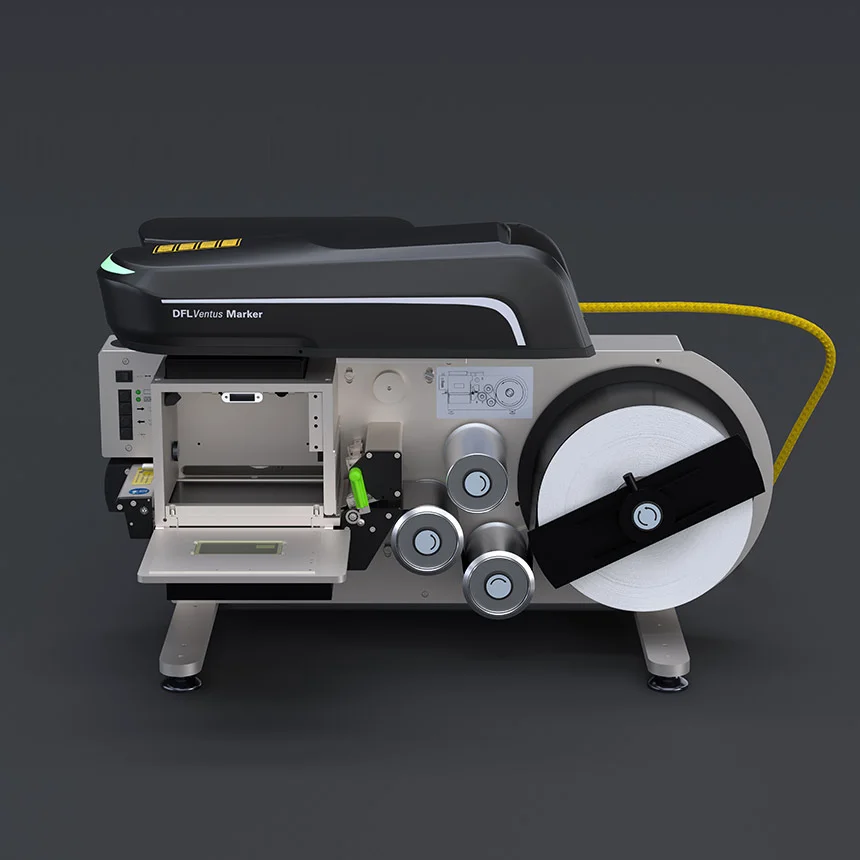

Folienhandlingsystem Foil Star mit Faserlaser der Business Fiber Serie, Seitenansicht

Technical data
Foil Star
Size (l x w x h)847 x 373 x 426 mm
Weight26 kg
Diameter of attachable film rollers300 mm
Label width120 mm
Feed rate100 mm/sec
Marking area (w x d) * 110 x 110 mm
Resolutionup to 725 dpi
Laser class1
* depending on the lens of the laser marking system used
Features
  • Continuous operation: use of continuous material
  • Label mode: pre-cut labels from the roll
  • Forward & return transport
  • Integrated cutter: cutting of complete label sets
  • Connection for external extraction and filter system
Optional accessories
  • External winding unit to pick the material back up once it has been marked
  • Desktop or industrial PC



Software

The laser system is controlled using our in-house, user-friendly Magic Mark laser software. It enables the marking of products with text, graphics, codes (DataMatrix codes, barcodes), serial numbers and logos. Intelligent rights management supports the creation of different operator groups. This allows the laser system to be adapted to the respective user requirements. Fully automatic operation with data exchange to various data sources is easily possible when used in automated production lines. The functions of Magic Mark can optionally be extended using plug-ins such as the code or script module.

More about software

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Symbolische Verpackung für die Lasersoftware Magic Mark V3

Safety

The Foil Star is a turnkey system solution in accordance with laser protection class 1 and therefore guarantees maximum operator safety. No additional safety equipment is required.

As an accessory option, we offer you special extraction and filter systems for extracting the pollutants produced during laser processing. A corresponding connection for an external laser extraction system is available on the laser station.

The ergonomically optimized design of the table workstations and the practical functionality ensure a high level of user satisfaction.

Suitable laser systems
